MS21044N04 - NUT, SELF-LOCKING, HEXAGON

NSN: 5310-00-088-0551, NIIN: 880551
New Surplus, Sold Per Each

Specifications

Nut Style: Hexagon
Bearing Surface Type: Chamfered Or Faced- Washer
Lubrication: Soluble Lubricant
Surface Treatment: Cadmium - Nut
Material: Plastic Polyamide Locking Insert
Material: Steel
Counterbore Diameter: 0.116" Min - 0.156" Max - Nut
Countersink Angle: 88.0° Nom - Nut
Nut Height: 0.133" Min - 0.157" Max
Width Across Flats: 0.243" Min - 0.251" Max
Thread Class: 3B
Thread Direction: Right-Hand
Thread Quantity Per Inch: 40
Thread Series: Unc
Thread Size: 0.112"
Locking Feature: Prevailing Torque With Nonmetallic Insert
Temperature Rating: 250.0° F Nom

Part Number Info

Part Number: MS21044N04
Unpunctuated: MS21044N04
NSN: 5310-00-088-0551
NIIN: 880551

Potential Alternates: AN365-440, 22NM40, 3M239N40, 69510-28, 7024420P1, 946536-1600, AN365-440A, AN635-440, F22NM40, MS20365-440, MS20470B3-3, MS21044-N0.4, NAS1021N04, E21301-01, 5310-088-0551, 5310000880551, Z00.0114417, Z00.N5402337004, 272 532 739, 190734, F22NM-440, F22NM-40, 422204-8, 422294-8, 525-628-90451, 5310PL0145345, 5310PL1368400, 5310PL1826710, 142200440, MIL-N-25027, MS20365-440A, NASM25027, 2533408-103, 10116547, 870121, 878, 4158067-015, 4158067-15, B4525-320-16, 1230122

Replaces Cancelled NSN: 5310-01-262-6754, 5310-01-257-0623, 5310-01-145-0812, 5310-00-891-5595, 5310-00-596-8031, 5310-00-596-7461, 5310-00-596-7457, 5310-00-285-7085, 5310-00-197-2298, 5310-00-185-1435, 5310-00-151-9058, 5310-00-050-3230

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

Gear Box

65B81121-1 - Gear Box, AR, Sold Per Each

65-23467-3 - Gear Box, AR, Sold Per Each

65-22819-4 - Gear Box, AR, Sold Per Each

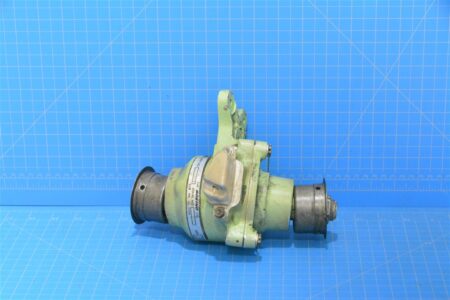

65B81121-3 - Gear Box, AR, Sold Per Each

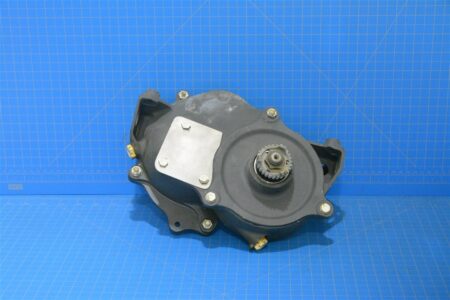

65-23557-1 - Gear Box, AR, Sold Per Each

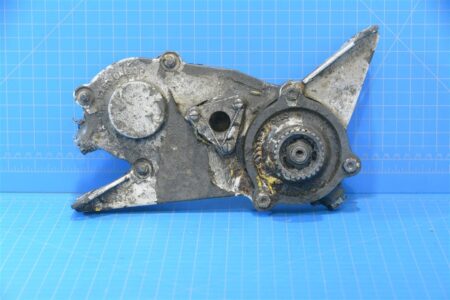

65-22819-6 - Gear Box, AR, Sold Per Each
