CR3213-6-05 - RIVET, BLIND

NSN: 5320-01-084-9235, NIIN: 10849235
New Surplus, Sold Per Each

A blind rivet is a type of rivet designed to be installed from one side of the material, often used in applications where the opposite side is inaccessible.

Specifications

Head Style: Universal
Shank Style: Self-Plugging Mechanically Locked - Stem
Surface Treatment: Cadmium And Chromate - Stem
Surface Treatment: Chromate - Sleeve
Material: Aluminum Alloy
Material: Steel
Expansion Device: Serrated - Stem
Fastener Length: 0.440" Min - 0.460" Max
Grip Length: 0.251" Min - 0.312" Max
Head Height: 0.080" Min - 0.090" Max
Head Major Diameter: 0.365" Min - 0.385" Max
Shank Diameter: 0.188" Min - 0.192" Max

Part Number Info

Part Number: CR3213-6-05
Unpunctuated: CR3213605
NSN: 5320-01-084-9235
NIIN: 10849235

Potential Alternates: CR3213-6-5, AF3213-6-05, AF3213-6-5, 5575957, HC3213-6-05, 5320PL0786845, M7885/2-6-05, MIL-R-7885/2, NAS9301BNS-6-05, 10124033, 719816, 719816-23

Replaces Cancelled NSN: 5320-01-134-5842

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

EYELET

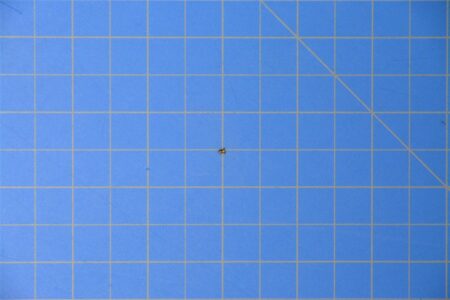

716123-22 - Eyelet, NS, Sold Per Each
