CR3213-5-08 - RIVET, BLIND

NSN: 5320-01-085-3322, NIIN: 10853322
New Surplus, Sold Per Each

A blind rivet is a type of rivet designed to be installed from one side of the material, often used in applications where the opposite side is inaccessible.

Specifications

Head Style: Universal
Shank Style: Self-Plugging Mechanically Locked - Stem
Surface Treatment: Cadmium And Chromate - Stem
Surface Treatment: Chromate - Sleeve
Material: Aluminum Alloy
Material: Steel
Expansion Device: Serrated - Stem
Fastener Length: 0.595" Min - 0.615" Max
Grip Length: 0.438" Min - 0.500" Max
Head Height: 0.067" Min - 0.077" Max
Head Major Diameter: 0.302" Min - 0.322" Max
Shank Diameter: 0.156" Min - 0.160" Max
Additional Information: Ns" Letters After The Material Code "B" Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter "H" After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.

Part Number Info

Part Number: CR3213-5-08
Unpunctuated: CR3213508
NSN: 5320-01-085-3322
NIIN: 10853322

Potential Alternates: CR3213-5-8, CR 3213 - 5 - 8, AF3213-5-08, AF3213-5-8, 3631251510, HC3213-5-08, HC3213-5-8, 5320PL1526105, M7885/2-5-08, MIL-R-7885/2, NAS9301BNS-5-08

Replaces Cancelled NSN: 5320-01-421-6817, 5320-01-135-3571

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

AN173-13A

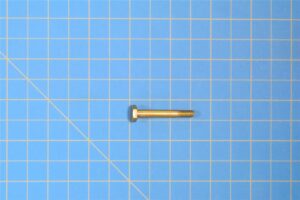

AN173-13A - BOLT, CLOSE TOLERANCE, NEW SURPLUS, SOLD PER EACH, NSN: 5306-00-182-1523, NIIN: 1821523
