NAS8303-8 - SCREW, MACHINE, NSN: 5305-01-482-2898, NIIN: 14822898

Description

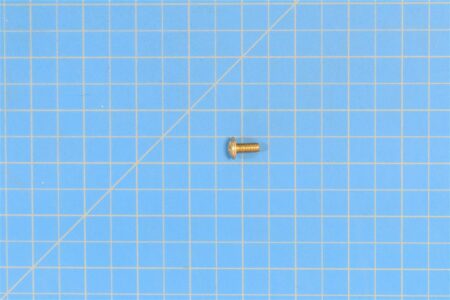

NAS8303-8 - SCREW, MACHINE

NSN: 5305-01-482-2898, NIIN: 14822898
New Surplus, Sold Per Each

A machine screw is a threaded fastener designed for precise assembly, typically used with pre-tapped holes or nuts. It withstands shear force, which is the force that causes two connected surfaces to slide past each other in opposite directions.

Specifications

Head Style: Round Extended - Washer
Screw Material: Steel
Fastener Length: 0.497" min - 0.500" max
Head Diameter: 0.353" nom
Head Height: 0.085" min - 0.105" max
Washer Diameter Extended: 0.428" nom
Washer Thickness Extended: 0.030" min - 0.037" max
Thread Class: 3A
Thread Diameter: 0.190" nom
Thread Direction: Right-Hand
Thread Length: 0.500" max
Thread Quantity Per Inch: 32
Thread Series Designator: Unjf
Internal Drive Style: Cross Recess Type 1

Part Number: NAS8303-8
Unpunctuated: NAS83038
NSN: 5305-01-482-2898
NIIN: 14822898

Potential Alternates: NAS8303-08

NAS standards are maintained by the Aerospace Industries Association (AIA) and specify high-performance parts, such as fasteners and fittings, used in both military and commercial aerospace applications.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
