MS21069L08 - NUT, SELF-LOCKING, PLATE, NEW SURPLUS, SOLD PER EACH, NSN: 5310-00-728-7715, NIIN: 7287715

New Surplus, Sold Per Each, MS Standard, MS21069 Series

$1.20

1044 in stock

























    MAKE AN OFFER – Fast Quote Response!

    We’re currently waiting on pricing, but if you have a price in mind, let us know! Enter the price you have in mind and the quantity you need, and if it works for us, YOU'VE GOT A DEAL! — if not, we'll submit a counteroffer to the provided email.

    Fast Response Guaranteed: Expect a response within 2 hours during regular business hours (Monday–Friday, 8 AM–5 PM CST).







    SKU: PN_MS21069L08
    Category:
    Tags: , , , , , , , , ,
    PN_MS21069L08_1
    Shipping Locations

    UPS GROUND - Domestic Only (International Shipping is paused until further notice).
    USE YOUR OWN SHIPPING ACCOUNT - Domestic and International Shipping (must enter your shipping account information in the shipping account field)

    Carrier Options

    UPS Ground

    Payment Options

    Credit Card, Net 30, Cash (for local pickup).

    Tax Exempt

    Please email your tax-exempt forms to Accounting@AVBOXUS.com when placing your order.

    Returns

    We do not offer returns in most cases. However, if you have an issue with your order, please email Sales@AVBOXUS.com for assistance.

    Local Pickup

    For local pickup, email Sales@AVBOXUS.com to arrange your order or call 850-466-3191.

    Order Processing

    Orders are processed within 24 hours. The cutoff for shipments is 3:30 PM daily. Orders made after 5:30 PM on Fridays or on the weekend will be processed the following Monday.

    Hours of Operation
    • Monday to Friday: 8 AM to 5 PM
    • Saturday: 9 AM to 3 PM
    Contact Information
    • Phone Number: 850-466-3191
    Shipping accounts and Purchase Order Numbers

    If you would like to use your own shipping account or have a Purchase Order number, please email us at Sales@AVBOXUS.com.
    Note: Orders using a provided shipping account may experience up to a 48-hour delay in shipping.

    Description

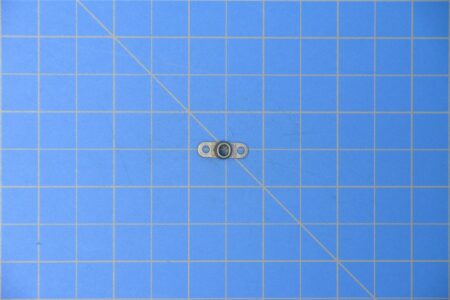

    MS21069L08 - NUT, SELF-LOCKING, PLATE

    NSN: 5310-00-728-7715, NIIN: 7287715
    New Surplus, Sold Per Each

    A self-locking nut plate is a fastener assembly with a built-in locking mechanism to prevent loosening due to vibration.

    Specifications

    Mount Arrangement: 2 Holes
    Nut Mounting: Straight Holes
    Nut Style: Plate
    Lubrication: Dry Film Lubricant
    Surface Treatment: Cadmium
    Material: Steel
    Center To Center Distance Between Mounting Holes Along Length: 0.466" Min - 0.470" Max
    Center To Mounting Distance: 0.234" Nom
    Mounting Hole Diameter: 0.098" Min - 0.103" Max
    Nut Height: 0.250" Max
    Nut Length: 0.692" Max
    Thickness: 0.047" Max
    Width: 0.230" Min - 0.297" Max
    Thread Class: 3B
    Thread Direction: Right-Hand
    Thread Quantity Per Inch: 32
    Thread Series: Unjc
    Thread Size: 0.164"
    Locking Feature: Prevailing Torque All Metal Design
    Temperature Rating: 450.0° F Nom

    Part Number Info

    Part Number: MS21069L08
    Unpunctuated: MS21069L08
    NSN: 5310-00-728-7715
    NIIN: 7287715

    Potential Alternates: VN202A1-82, MK1000-08BAC, M 12600-82, MD31623-410A3-L, Z00.N5452397175, RMA9201M-82, 5310PL0145312, 5310PL0730389, NAS697A08, BRM200A08, RM200A08, NS103197-82, T8076S832

    Replaces Cancelled NSN: 5310-00-584-7339, 5310-00-245-4613

    New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

    Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

    Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

    Additional information

    Weight 0.002 lbs
    Dimensions 0.6875 × 0.25 × 0.25 in
