204-011-105-001 - TRUNNION ASSEMBLY, FOR USE ON BELL 204, NSN: 1615-00-474-9224, NIIN: 004749224

Description

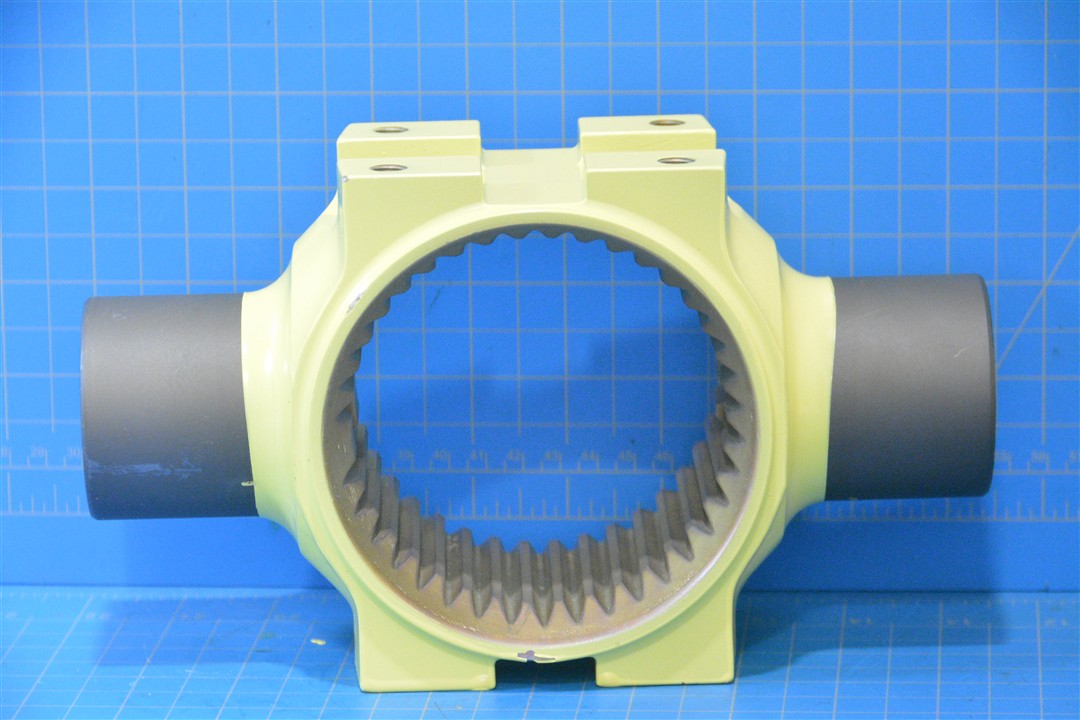

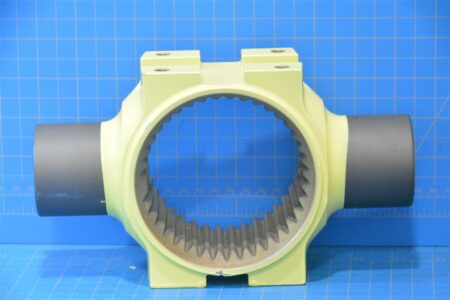

204-011-105-001 - TRUNNION ASSEMBLY

Serviceable, Sold Per Each, Steel

A Trunnion Assembly is a structural component designed to support and pivot rotating parts, commonly used in aircraft landing gear, rotor systems, or mechanical linkages. It provides a secure mounting point while allowing controlled movement and load distribution.

Bell 204
This part is used on Bell 204 Helicopters, the original "Huey" that redefined helicopter utility and performance. Known for its ruggedness and reliability, the Bell 204 became an indispensable tool for troop transport, medevac, and supply missions during the Vietnam War, earning a legendary status among pilots and ground forces. What Sets the Bell 204 Apart:

• Military Pedigree: Designed specifically for combat support, with features that ensure performance in harsh environments.
• Multi-Role Capability: Easily adapted for medevac, cargo transport, and even armed gunship configurations.
• Proven in Combat: Its robust design and powerful engine made it a reliable asset in the most challenging conditions.
• Quick Deployment: Capable of carrying troops and equipment rapidly to and from the battlefield.

The Bell 204's ability to deliver in critical situations has made it an icon of military aviation and a precursor to many modern helicopter designs.

Specifications

Material: Steel
Teeth Count (Spline): 38
Counterbore Diameter (Left And Right End): 1.501" Nominal
Counterbore Length (Left And Right End): 1.000"
Diameter (Pitch): 3.800"
Height (Center): 3.000" Nominal
Inner Diameter (Left And Right End): 1.125" Nominal
Inner Length (Teeth Count (Spline)): 1.780"
Major Diameter: 3.9800" - 3.9950"
Minor Diameter: 3.7000" - 3.7025"
Outer Diameter (Left And Right End): 2.2499" - 2.2505"
Overall Length: 9.000" Nominal
Width (Center): 5.200" Nominal

Part Number Information

Part Number: 204-011-105-001
Unpunctuated: 204011105001
NSN: 1615-00-474-9224
NIIN: 004749224
